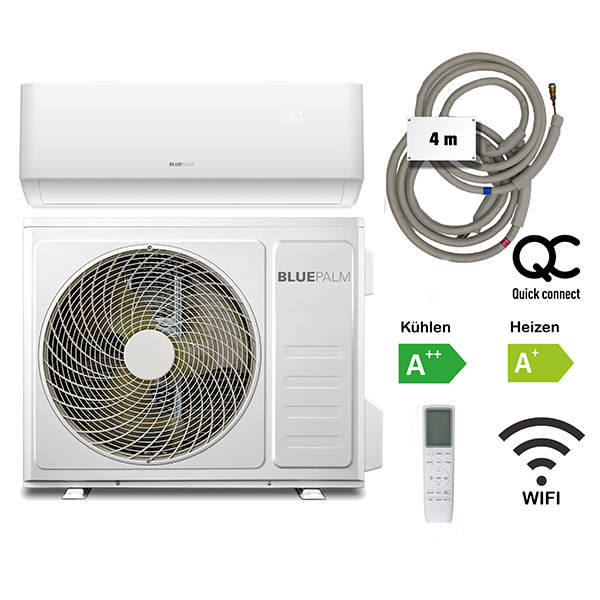

PREMIUM SPLIT AIR CONDITIONER T-PRO SERIES 12,000 BTU

Description

Cooling capacity: 12,000 BTU – max. 105 m³ – max. 42 m² with a room height of 2.5 metres

Air conditioning units can be used to cool, heat and dehumidify indoor spaces, depending on the operating mode. The dehumidification function reduces humidity, whilst the cooling and heating functions regulate the room temperature according to the selected setting.

Particularly in bedrooms, living rooms or workspaces, an adjustable room temperature can be used to tailor the indoor environment to individual needs. The dehumidification function allows for a further reduction in humidity.

Attic conversions and loft flats can also heat up quickly when outside temperatures are high. An air-conditioning system can reduce the room temperature by removing heat from the interior. Depending on the operating mode, cooling, heating and dehumidification functions are available.

Premium Features

• 3D Air Flow / Vertical & Horizontal Auto Swing: distribution of the airflow to the left/right and up/down
• Quiet operating mode: Operation at a noise level of up to 18 dB
• Anti-freeze function: Set to +8 °C
• Temperature measurement via the remote control: Measures the temperature at the remote control’s location
• Cooling mode: Operation at outdoor temperatures down to -15 °C
• Comfort Cooling: Reduced dehumidification during cooling operation
• 5 fan speeds: Low, Middle, High, Turbo and Mute
• Turbo function: Increased performance in cooling and heating modes
• Child lock / Key lock: Lock function for operation
• Illuminated display: Backlit display on the remote control
• Louver Position Memory: Saves the set opening angle of the louvers
• Gold Fin: Coating on the heat exchanger
• I Set: Remote control memory function
• Self-Cleaning: Automatic cleaning function
• Filters: Silver-ion, activated carbon, catechin and vitamin C filters

[image src="/assets/Uploads/BC18SK-Gantle-Wind2.jpg" id="6691" width="298" height="75" class="leftAlone ss-htmleditorfield-file image"]

Technical Data

Specifications:

• Cooling capacity: 12,000 BTU
• Refrigerant: R32
• SEER / SCOPE: 6.1 / 4.0
• Cooling capacity: max. 3,400 watts
• Heating capacity: max. 3,420 watts
• Energy efficiency class (cooling): A++
• Energy efficiency class (heating): A+
• Room air circulation: 550 m³/h
• Internal noise level: 32–50 dB(A)
• External sound power: 60 dB(A)
• Indoor sound pressure: 22–40 dB(A)
• External sound pressure: 50 dB(A)
• Power supply: 220–240 V ~ / 50 Hz
• Cooling: 1.5–9.0 A
• Heating: 1.5–10.0 A
• Application range: max. 105 m³ ( * 42 m²) * for a room height of 2.5 metres

Dimensions:

• Product internal/external (W×H×D): 777×250×201 mm / 777×498×290 mm
• Packaging internal/external (W×H×D): 860×265×350 mm / 840×540×350 mm
• Net weight (internal/external): 9.5 kg / 22.5 kg
• Gross weight (indoor/outdoor): 11.5 kg / 26.5 kg

EAN indoor unit: 9005151006162; EAN outdoor unit: 9005151006179

Note: This unit must be installed by a certified specialist contractor in accordance with the Climate Protection Regulation (EU Regulation 517/2014) (Implementing Regulation No. 2015/2067). Please note that installation costs and times may vary depending on the regional specialist contractor.

Datasheets

• Datasheet (german)
• Datasheet

Conformity

• Declaration of Conformity (EU)
